Product ID:HE20E

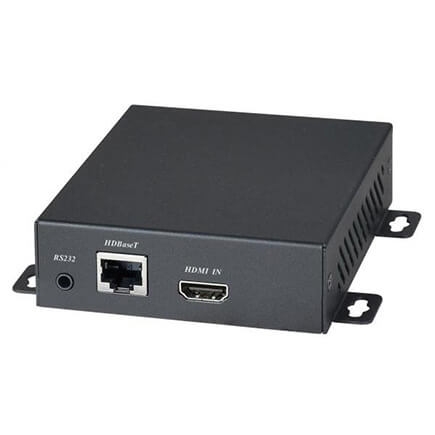

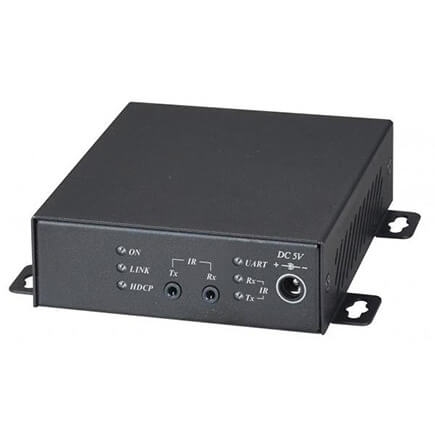

HE20E 4K2K 60Hz HDMI (HDBaseT) CAT5e 100M Extender with IR/RS232
HE20E HDMI CAT5 Extender is using only one cost-effective CAT5E/6 cable to extend your
UHD display up to 100 meters at 4K2K 60Hz.  It supports the special long reach mode up to 150M
at 1080p 60Hz 8bits.  With Bi-directional IR and RS232 functions, these will deliver significant value
for the entire home and commercial entertainment system.

  • Extends HDMI, RS232 and IR signal over one CAT5e/6 cable.
  • HDBaseT 2.0, HDCP 2.2 & DVI Compliant.
  • Uncompressed high definition video up to 4K 60Hz 4:2:0.
  • Audio supports up to LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA
  • Transmission range up to 100 meters at 4K2K resolution.
  • Support long reach mode distance up to 150M at 1080p@60Hz@8bits.
  • Bi-directional IR, support 30-60khz.
  • Bi-Directional RS232.
  •
    ITEM NO.HE20ETHE20ER
    HDMI Connector HDMI Type A x 1
    HDMI Video Support 1080p @ 60Hz @ 48bits?3D?4K x 2K(YCbCr 4:2:0)
    HDMI Audio Support Up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA
    HDBaseT Connector RJ45 x 1
    HDBaseT Distance 100M
    RS-232 Connector DB9(F)/3.5mm STEREO PHONE JACK DB9(M)/3.5mm STEREO PHONE JACK
    RS-232 Baud Rate 115200 bps / full duplex
    IR Input/Output 3.5mm Phone Jack x 2
    IR Carrier Frequecny/Angle/Distance 30~60KHz / T?± 10° / R?± 55° / 5M /Bi-directional
    Audio Connector Optical (TOSLINK) TX Optical (TOSLINK) RX
    Power Consumption 800mA 1200mA
    Power Adapter DC 5V 2A
    Temperature Operation: 0 to 55?, Storage: -20 TO 85?, Humidity: up to 95%
    Dimensions   mm X
    Weight g X
    ITEM NO. HE20ET
    HDMI Connector HDMI Type A x 1
    HDMI Video Support 1080p @ 60Hz @ 48bits、3D、4K x 2K(YCbCr 4:2:0)
    HDMI Audio Support Up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA
    HDBaseT Connector RJ45 x 1
    HDBaseT Distace 100M
    RS-232 Connector DB9(F)/3.5mm STEREO PHONE JACK
    RS-232 Baud Rate 115200 bps / full duplex
    IR Input/Output 3.5mm Phone Jack x 2
    IR Carrier Frequecny/Angle/Distance 30~60KHz / T:± 10° / R:± 55° / 5M /Bi-directional
    Audio Connector Optical (TOSLINK) TX
    Power Consumption 800mA
    Power Adapter DC 5V 2A
    Temperature Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
    Dimensions mm x    x
    Weight       g
